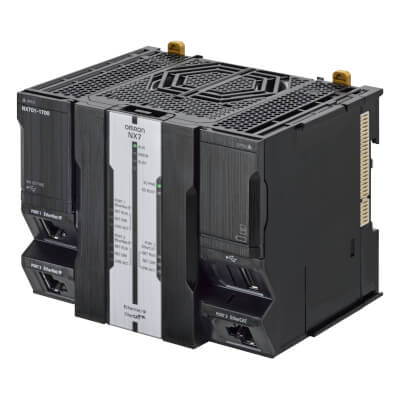

NX701-1700
Sysmac NX7 CPU avec 80GB de mémoire, EtherCat (256 servo axes, 512 noeuds Ethercat au total) et 2 ports Ethernet IP
Description
| Controller functionality | Motion control, OPC-UA, Sequence control |
| Primary task cycle time | 0.125 ms |
| Program memory | 80 MB |
| Variables memory | 260 MB |
| Max. number of synchronous axes | 256 |
| Max. number of axes (incl. virtual) | 256 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication option(s) | None |
| Max. number of remote I/O nodes | 512 |
| I/O system | NX I/O Bus |
| Max. number of expansion units | 0 |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 132 mm |
| Product Depth (unpacked) | 100 mm |
| Product Weight (unpacked) | 880 g |
